Shaft Or No Shaft
Confirm whether the house already has an elevator shaft or needs a separate shaft structure planned around the existing layout.
Private Residence / Villa Home Lift
WELLS Home Lift Planning For Private Residences And Villas
WELLS home lift planning starts with the building: available shaft space, pit and overhead limits, load capacity, door style, and cabin finish. Work with experienced elevator manufacturers when your project needs residential elevator solutions for a villa, private house, or retrofit accessibility upgrade.
250-400kgListed load capacity range
0.3-0.5m/sRated speed range
12m / 5 floorsListed maximum travel and floors
Residence Constraint Map
Start With The Building, Then Select The Lift
A home lift project succeeds when the model discussion is tied to real residence constraints: shaft availability, pit depth, overhead space, door movement, and daily mobility needs.
Pit And Overhead Limits
Use pitless and low-overhead options when the residence cannot accept a traditional elevator construction envelope.
Door Movement
Discuss swing-door and automatic-door preferences early, because access direction affects landing space and daily usability.
Travel And Floors
Match the listed 12m travel height and 5-floor limit to the building before finalizing cabin size, control panels, and finishes.
Capacity is only one part of selection. A residential lift also needs the right travel height, door type, control setup, shaft treatment, and interior finish for the house.
Capacity And Technical Planning
Use The Home Lift Specification Range Carefully
The product details list three load capacities and a compact residential operating range. Treat these as starting points for layout and inquiry preparation.
| Load capacity | 250kg, 320kg, 400kg |
|---|---|
| Rated speed | 0.3-0.5 m/s |
| Maximum traveling height | 12m |
| Maximum floors | 5 |
| Traction | Permanent magnetic synchronous gearless machine |
| Door operator | VVVF door operator |
| Control | Simplex control with listed indicator/display options |
| Residential configuration | Pitless, low overhead, belt drive, swing door, and automatic door options are named on the product page. |
Finish And Interface Choices
Prepare The Cabin, Door, And Control Details Together
Home lifts sit inside private interiors, so technical planning and visible finish choices should be discussed in the same project brief.
Cabin Materials
- Hairline or mirror stainless steel
- Wood decor options
- Glass options where the layout supports them
Floor And Door Setup
- PVC, granite, or marble floor choices
- Swing-door or automatic-door discussions
- Landing space and entry direction checks
Control Interfaces
- Car operation panel preferences
- Landing operation panel preferences
- Indicator and display requirements
Related WELLS Elevator Paths
Compare Nearby Elevator Categories
If the residence or property brief changes, these WELLS product pages help separate home lift planning from scenic, medical, platform, or wheelchair-access needs.
Panoramic Lift
Use this path when visibility, glass styling, and passenger experience are central to the property design.
View Panoramic Lift

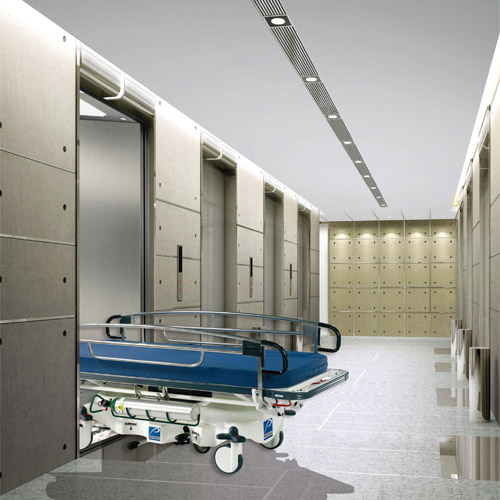

Hospital Lift
Review this page when bed movement, medical building circulation, or patient transport is part of the project scope.
View Hospital Lift

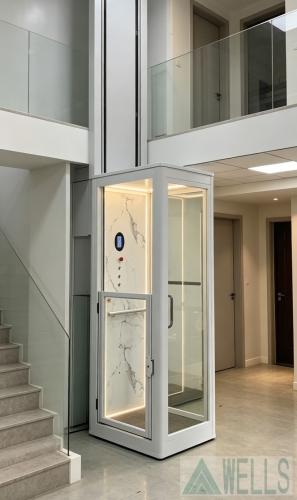

Platform Lift
Compare platform lift planning when a smaller vertical access solution may fit the site better than a full cabin lift.
View Platform Lift

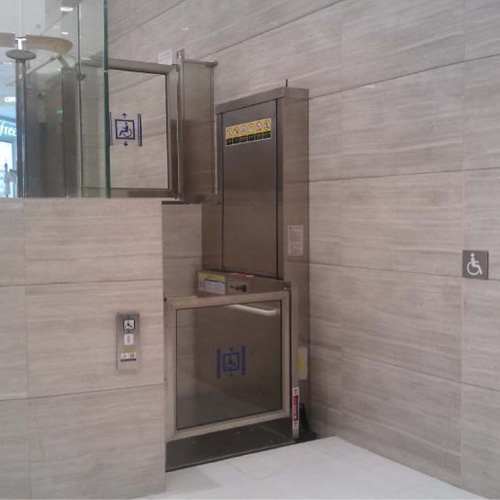

Wheelchair Platform
Use this page when wheelchair accessibility is the main vertical-transport requirement for a home or facility.
View Wheelchair PlatformRelated Reading
Review Home Lift Fit Before Sending Drawings
These WELLS articles help clarify private-residence fit, capacity selection, and the limits of different home elevator types.
Private Residences And Villas
Check how home lifts fit residence and villa projects before comparing cabin, shaft, and entry options.
Read Residence Notes250kg, 320kg, And 400kg Loads
Use the capacity discussion to decide whether the project brief should prioritize compact access, everyday household use, or a larger residential lift load.
Read Capacity NotesTypes, Uses, And Limits
Clarify what a private-residence elevator should and should not be expected to solve before confirming the model direction.
Read Type NotesPlanning FAQ
WELLS Home Lift Questions
Where can a WELLS home lift be used?
The WELLS home lift is designed for private houses and villas, including new residential projects and retrofit situations where vertical mobility needs to be added.
What capacity range is listed for the home lift?
The product specifications list 250kg, 320kg, and 400kg load capacities, with rated speed from 0.3 to 0.5 m/s.
Can the lift be planned for a house without an existing shaft?
The product information describes pitless and low-overhead options and notes that WELLS can provide shaft structures for houses without an elevator shaft.
How many floors and how much travel height are listed?
The standard specification lists a maximum traveling height of 12 meters and a maximum of 5 floors.
Which finish and door choices should be discussed?
Discuss swing or automatic doors, cabin finishes such as stainless steel, wood decor, or glass, floor materials such as PVC, granite, or marble, and COP/LOP panel preferences.
What should be included in a home lift inquiry?
Share the residence type, floor count, travel height, available shaft or retrofit constraints, preferred load capacity, door type, cabin finish, and any accessibility needs.
